DMAX Injectors

The Isuzu D-MAX 4JJ1 uses Denso common rail diesel injectors, operating within a high-pressure fuel system that separates pressure generation from the injection event itself. It's worth noting that the 4JJ1 injectors are specific to the Isuzu/Holden platform and are not interchangeable with those used in Mazda vehicles, which run a different injection architecture entirely, so always confirm the correct part before ordering.

These injectors are either solenoid-operated or piezoelectric, with the actuation mechanism creating a pressure differential that lifts a needle valve to release fuel. Both types allow for rapid, precise injection events, and the 4JJ1 system can deliver multiple injection pulses per firing cycle, including pilot, main, and post-injection events, to improve combustion efficiency, reduce emissions, and lower engine noise. The common rail approach means fuel pressure isn't tied to engine speed, giving the ECU far greater control over delivery timing and quantity across all operating conditions.

The most common indicators are increased fuel consumption, loss of power under load, rough or uneven idle, hard cold starting, and excessive black or white smoke from the exhaust. D-MAX injectors can become clogged or wear out due to the tight tolerances and extreme operating pressures involved, and when they start to drift off spec the effects show up quickly. A fault code from the ECU related to fuel trim or injector balance is often the earliest warning sign on a common rail system, sometimes appearing before any obvious drivability symptoms. D-MAX injectors typically require servicing or replacement between 100,000 and 150,000 kilometres depending on fuel quality and maintenance habits. Acting on the early signs prevents the kind of secondary fuel system damage that turns a straightforward injector replacement into a much bigger job.

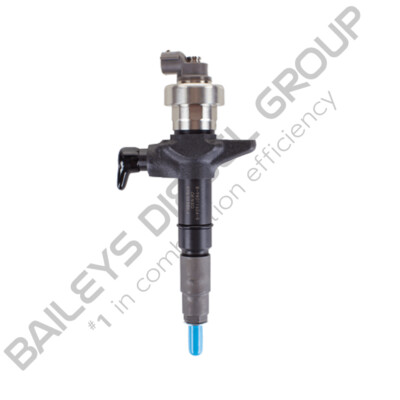

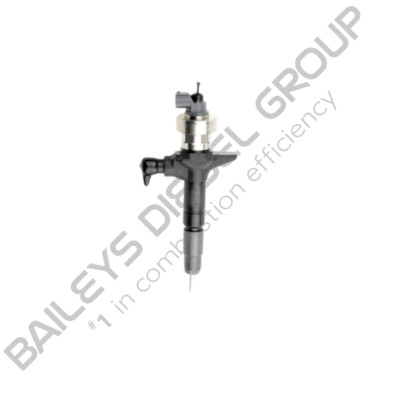

New genuine Denso injectors are manufactured to exact OEM specifications, tested to the strictest OEM standards before leaving the production line. The Denso common rail injector for the Isuzu D-MAX 4JJ1 is designed for exact replacement and replaces OE part numbers 8980116040 through to 8980116045. They're the right starting point for restoring factory fuel delivery and long-term reliability.

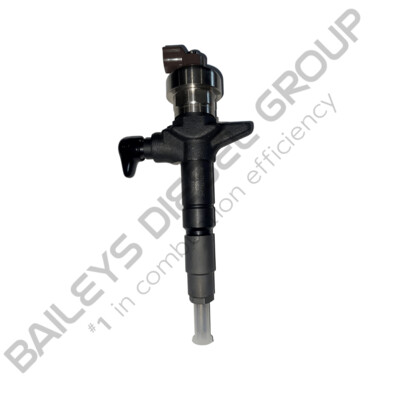

Blueprinted injectors are remanufactured units that have been precision-calibrated beyond the standard OEM flow spec. Upgrading to high-flow or blueprinted D-MAX injectors increases horsepower and torque and improves throttle response, making them a strong option for D-MAX owners running a tune, a larger turbocharger, or any application where the factory injector is holding the engine back. Bailey's High Flow Stage 1 option delivers a 30% increase in flow rate and is suited to engines where the fuel system has been built to support the additional delivery. High-quality aftermarket injectors can also feature improved internal designs and protective coatings for greater durability compared to older factory designs on high-kilometre engines.

Yes. Each D-MAX injector carries a unique A9 compensation code that must be entered into the ECU during installation. This code tells the engine management system how to fine-tune fuel delivery for that specific injector's flow characteristics, compensating for the natural variance between individual units. Replacing D-MAX injectors requires specialised equipment to enter the compensation code into the ECU; without it, the engine runs on default fuelling parameters, which typically produces rough running, poor fuel economy, and misfiring on otherwise serviceable components. Before installation, it is essential to confirm compatibility by checking the VIN, OEM injector part number, or compensation code to avoid fitting an incorrect unit that won't code into the ECU. Have the coding carried out by an authorised workshop before the engine is run.

Under normal operating conditions, D-MAX injectors typically require servicing or replacement between 100,000 and 150,000 kilometres, though this varies considerably based on fuel quality, filter maintenance, and operating conditions. The 4JJ1's injectors operate at pressures often exceeding 2,000 bar, and at those levels even small amounts of fuel contamination or water in the system accelerate internal wear significantly.

Keeping the fuel filter serviced on schedule and using quality diesel goes a long way toward reaching the upper end of that range. The frequency of servicing required also depends on operating environment, as vehicles running in dusty conditions, towing regularly, or spending extended time at idle will reach the lower end of the service interval sooner.

Vehicles used for towing, heavy loads, or extended idle periods put additional demand on the injectors and may see wear occurring closer to the lower end of the service interval.

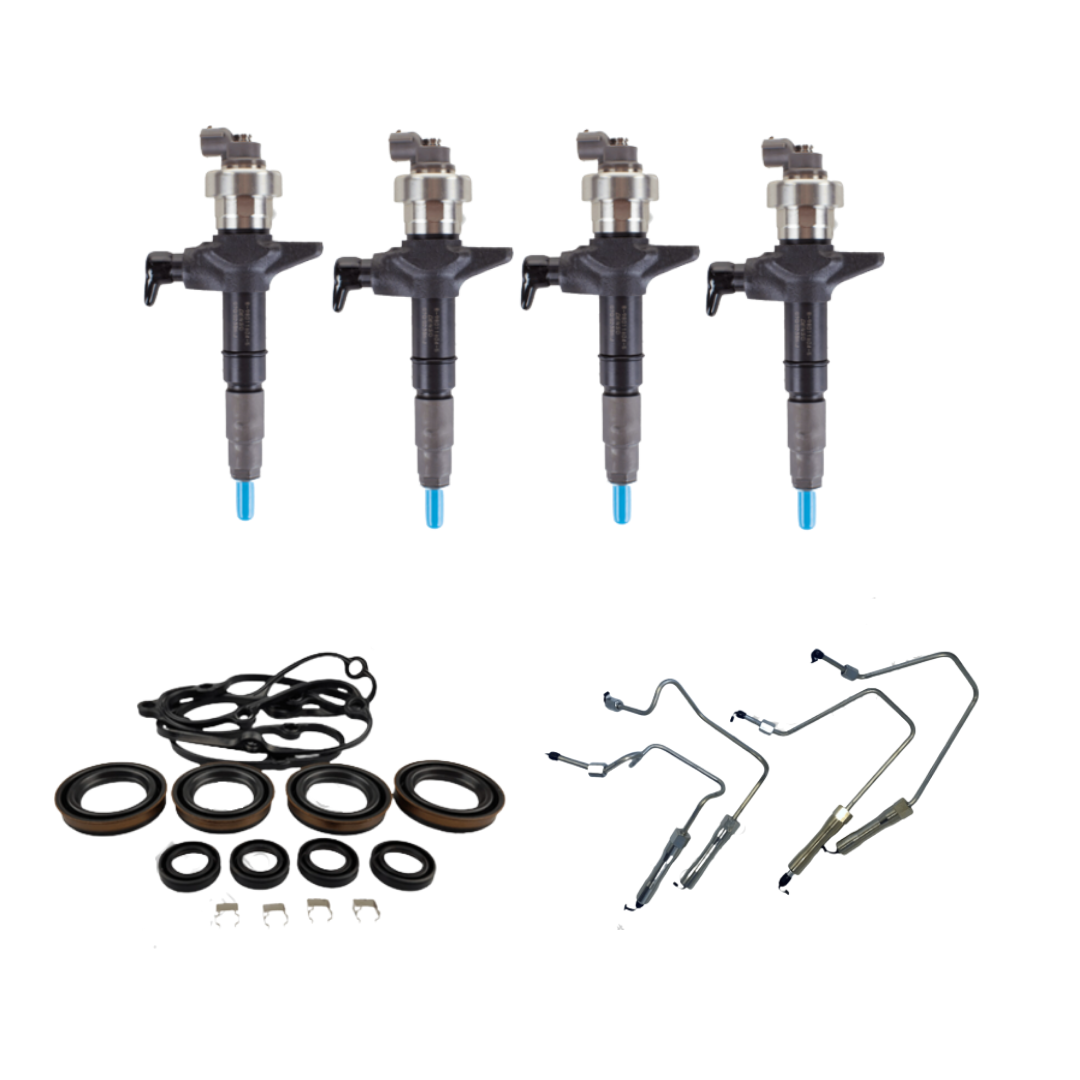

The D-MAX injector bundle package includes a full set of four new genuine Denso injectors along with the 4JJ1 fitting kit, covering the seals, washers, and O-rings needed to complete the installation correctly. New nozzle washers, O-rings, and leak-off seals are recommended during any D-MAX injector installation, and sourcing them separately is an easy step to miss. The bundle takes care of that in a single order. The compensation code for each injector is located on the injector body and must be recorded before installation begins. A blueprinted bundle is also available for owners who want the performance advantage of blueprinted injectors without having to source the fitting components separately.

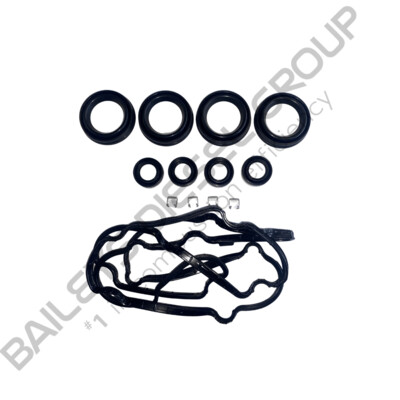

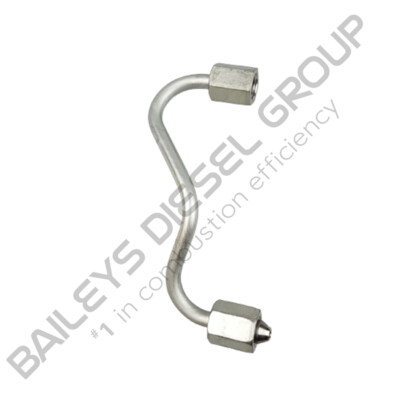

At minimum, always fit new copper washers, O-rings, and leak-off seals. Reusing old seals on a common rail system is a reliable way to introduce leaks and backpressure issues into an otherwise clean installation. Bailey's also strongly recommends replacing the high pressure fuel lines at the same time on higher-kilometre vehicles, as the steel lining of these lines begins to deteriorate internally from around 120,000 kilometres and releases microscopic particles that travel directly into the new injectors. Installation requires adherence to torque specifications and clean working practices to avoid contaminating the precision components inside the injector body. Having the job carried out by a qualified diesel technician with the correct diagnostic equipment for ECU coding will produce the best outcome.

Yes. High-performance D-MAX injectors deliver a higher volume of fuel to the combustion chamber, increasing horsepower and torque while improving throttle response. Bailey's High Flow Stage 1 blueprinted option provides a 30% increase over the standard flow rate and suits D-MAX builds running a performance tune or upgraded turbocharger. The 4JJ1 injectors are capable of firing multiple pulses per power stroke, and a well-calibrated high-flow injector takes full advantage of that capability. For best results, any injector upgrade should be matched to a fuel system tune carried out by a qualified diesel tuner who can optimise the ECU calibration around the new injector's flow characteristics.

For most D-MAX owners, new genuine Denso injectors are the recommended choice when restoring a high-kilometre engine or addressing confirmed injector failure. They bring the fuel system back to the standard it was built around, and come with full statutory warranty coverage, giving you peace of mind that you're covered in the unlikely event something isn't right with the unit. Where budget is a factor, Bailey's blueprinted range is a strong alternative that often meets or exceeds OEM output on standard flow applications. If you're unsure which option is right for your engine's condition and build goals, the Bailey's team can talk through it with you before you commit to anything.
