Ford Ranger Injectors

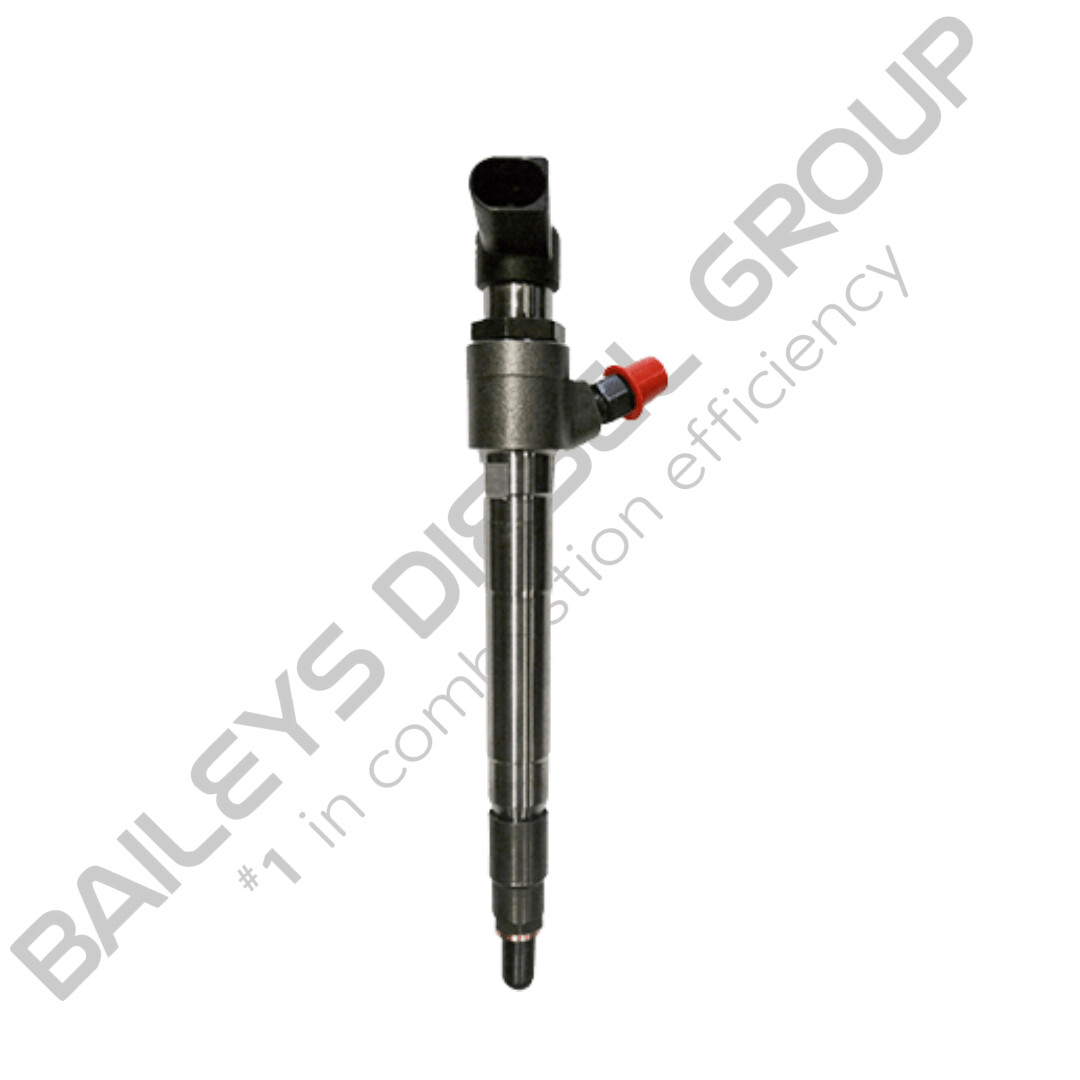

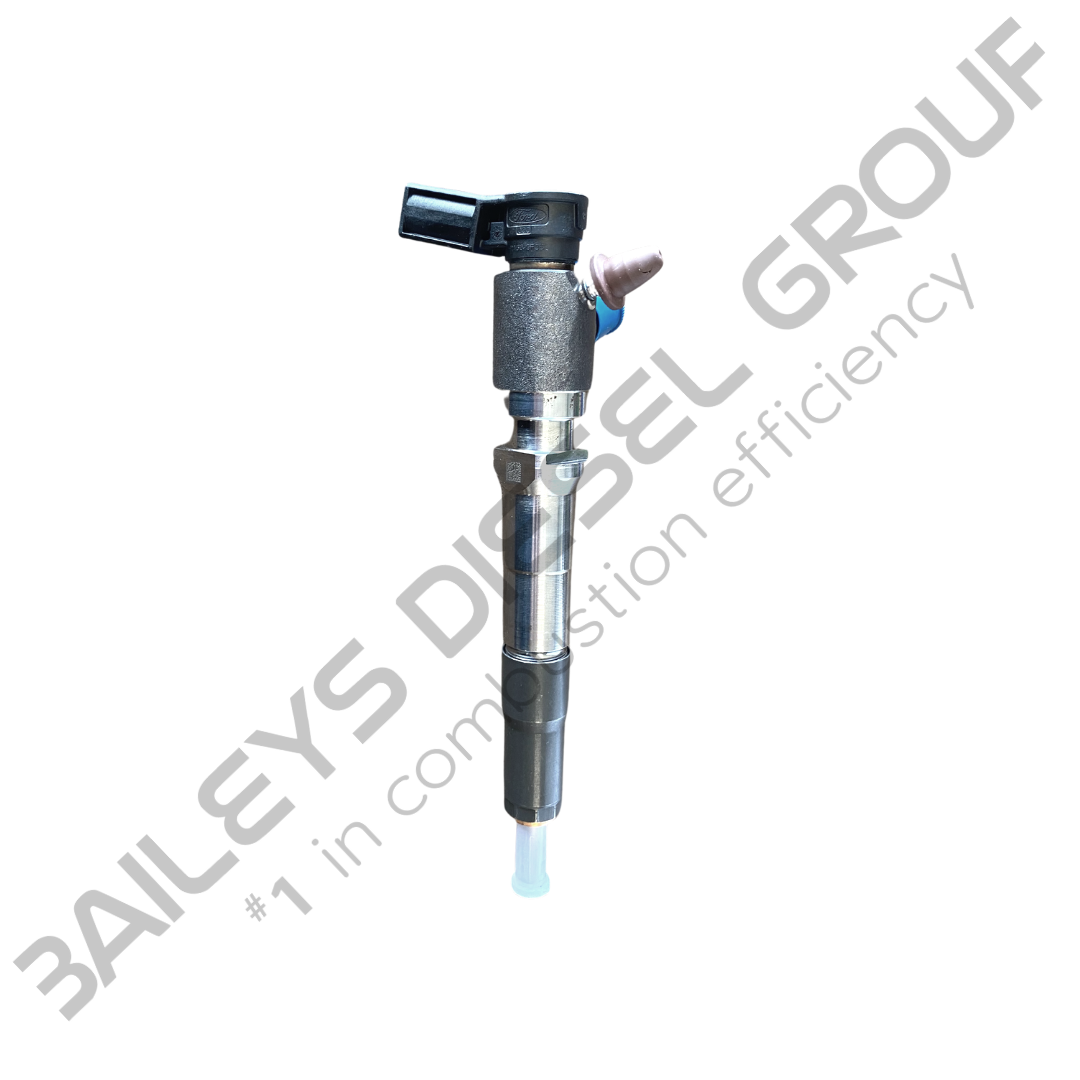

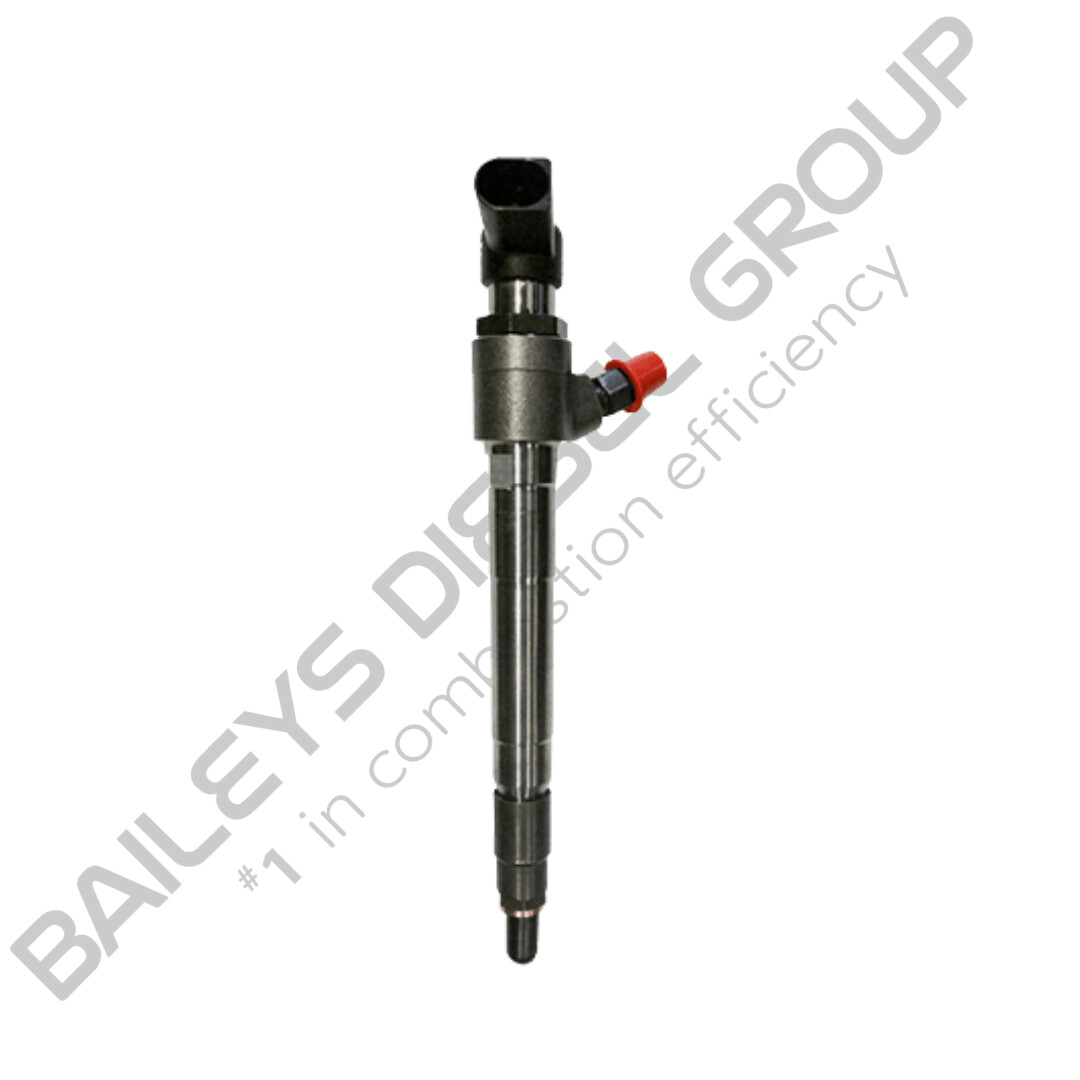

It depends on the generation. Earlier Rangers from the mid-2000s used mechanical and early common rail systems in the 2.5L and 3.0L engines, with Bosch injectors across those variants. From 2011 onwards, the PX Ranger introduced the 4-cylinder 2.2L P4AT and the 5-cylinder 3.2L P5AT, both using Siemens common rail injectors. The P4AT requires 4 injectors; the P5AT requires 5. The newer PX3 2.0L Rangers introduced from 2019 use VDO common rail injectors. Each system has different pressure specifications, spray characteristics, and calibration requirements, so correct identification is critical before purchasing.

The most reliable way is to cross-reference your build year and engine code. The main breakpoints are: 2.5L and 3.0L engines prior to 2011 using Bosch injectors, the P5AT 2.2L and 3.2L engines from 2011 through to mid-2015 using one Siemens part number, and the P5AT from June 2015 onwards using an updated Siemens specification. The 2019+ 2.0L PX3 uses VDO. If you're not certain, the Bailey's team can confirm compatibility using your VIN before you order.

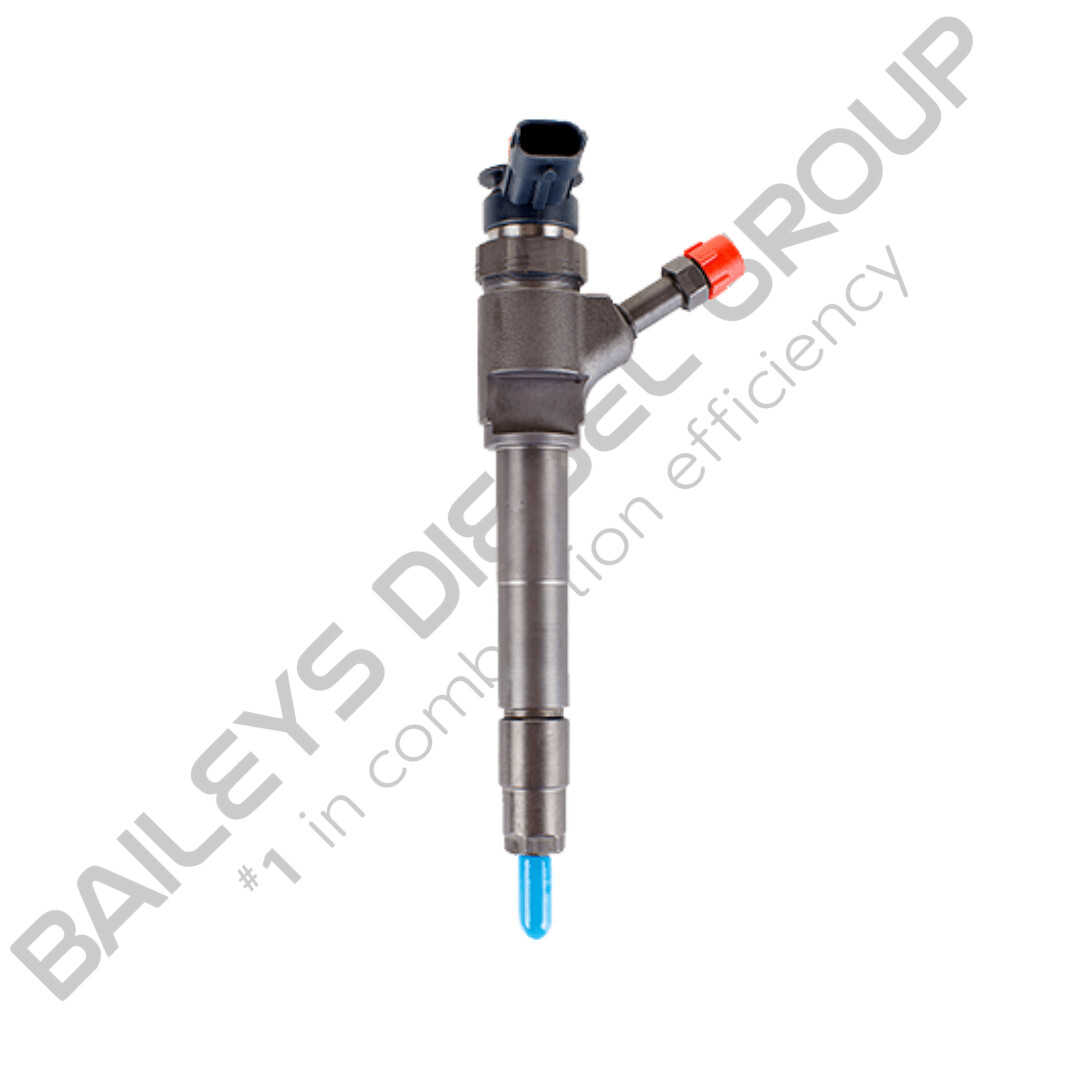

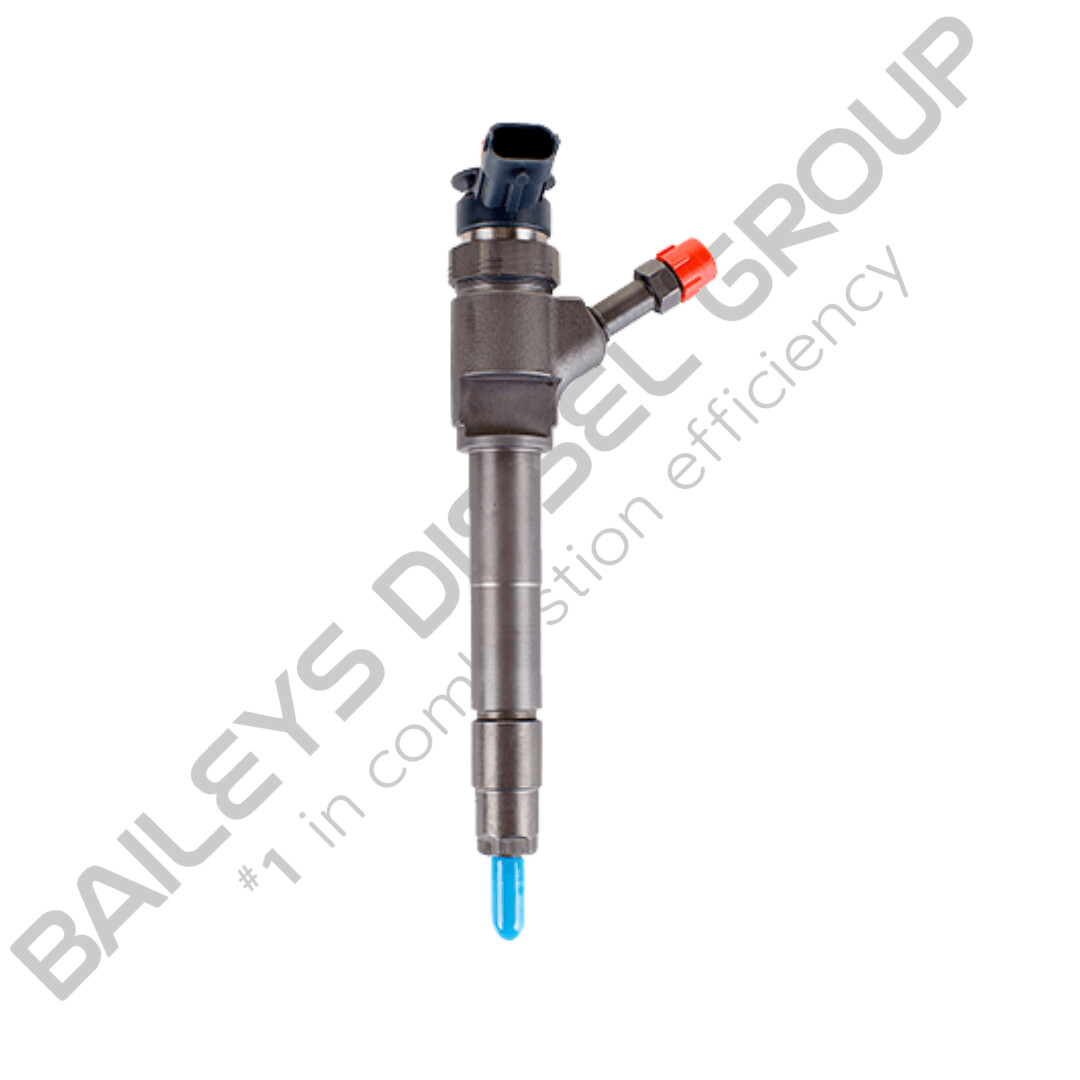

Genuine injectors are direct OEM replacements, built to the same specification as the unit that came out of your engine at the factory. They're the straightforward choice for restoring standard performance and reliability, and represent great value when you factor in their proven longevity.

Blueprinted injectors are high quality aftermarket injectors that have been precision-calibrated beyond the standard OEM flow spec. Each individual injector is set to a higher flow rate than factory, making Bailey's blueprinted range a strong option for Ranger owners who want more from their engine, whether that's improved throttle response, better fuel economy under load, or additional power output. They're a particularly popular option on the 2.5L and 3.0L variants used for towing and off-road work.

The common symptoms of faulty fuel injectors in the Ford Ranger include hard cold starts, rough idling, reduced power under load, increased fuel consumption, hesitation under acceleration, and black or excessive exhaust smoke. Clogged or worn injectors can also cause incomplete combustion, leading to a knock or rattle from the engine at idle. Faulty injectors left unaddressed can escalate into broader performance issues across the fuel system.

On common rail Rangers, a fault code from the ECU related to fuel trim or injector balance is another reliable early warning sign. Unlike petrol engines where deterioration can be more gradual, diesel injector symptoms tend to surface sharply, so acting on these signs early is always the better call.

The lifespan of Ford Ranger diesel injectors under normal conditions and with good fuel quality is typically between 100,000 and 150,000 kilometres before performance begins to drop off. Injector wear accelerates considerably if the vehicle has run on contaminated fuel, if the fuel filter has been neglected, or if the tank is regularly run low. Faulty injectors resulting from accelerated wear are one of the more preventable outcomes with basic maintenance habits. The injectors on common rail systems rely on fuel flow for internal cooling, so keeping the tank above half is a simple habit that extends service life.

Yes, on all P5AT and 2.0L common rail models. Each fuel injector carries unique calibration codes that the ECU uses to balance fuel delivery across all cylinders. After fitting new injectors, those codes need to be loaded into the ECU by an authorised workshop before the engine is run. Skipping this step causes injector problems that can be easily mistaken for a mechanical fault, leaving the engine on default fuelling parameters and producing rough running and poor fuel economy.

On the older 2.5L and 3.0L models the coding requirement varies, so check with Bailey's or your diesel technician before the job begins.

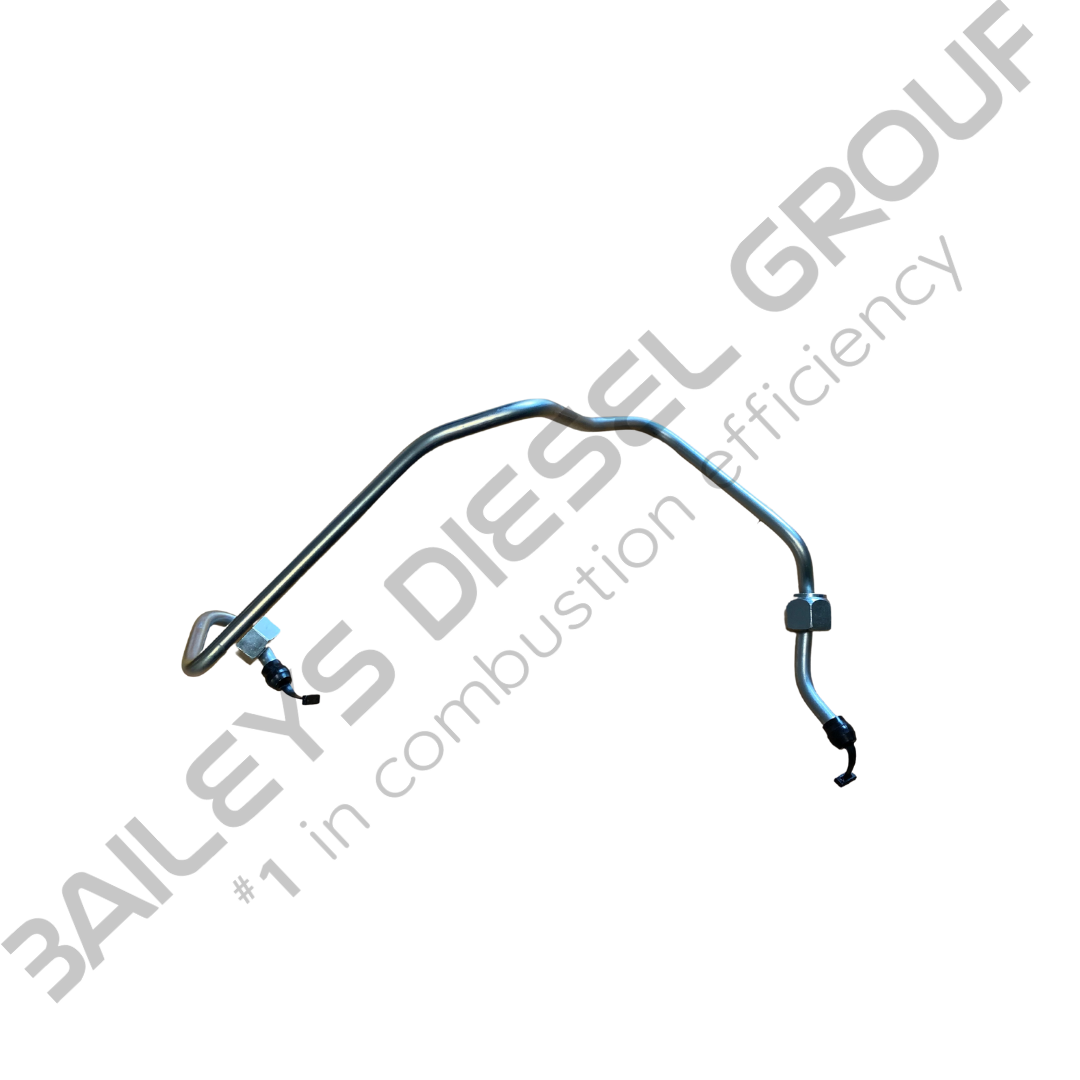

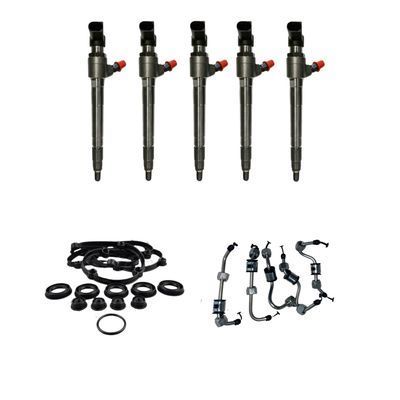

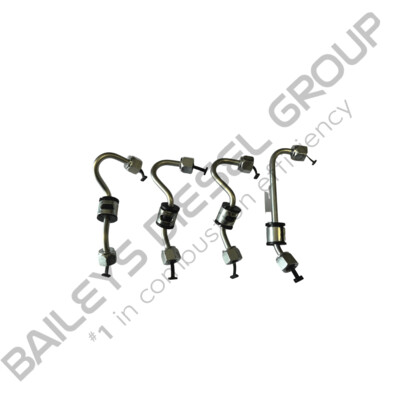

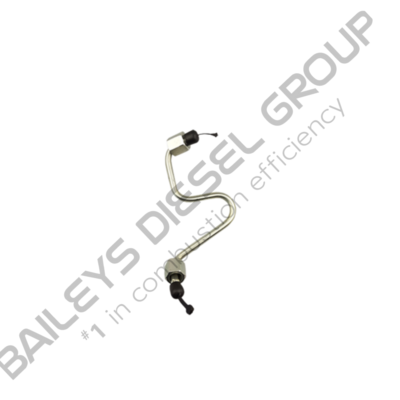

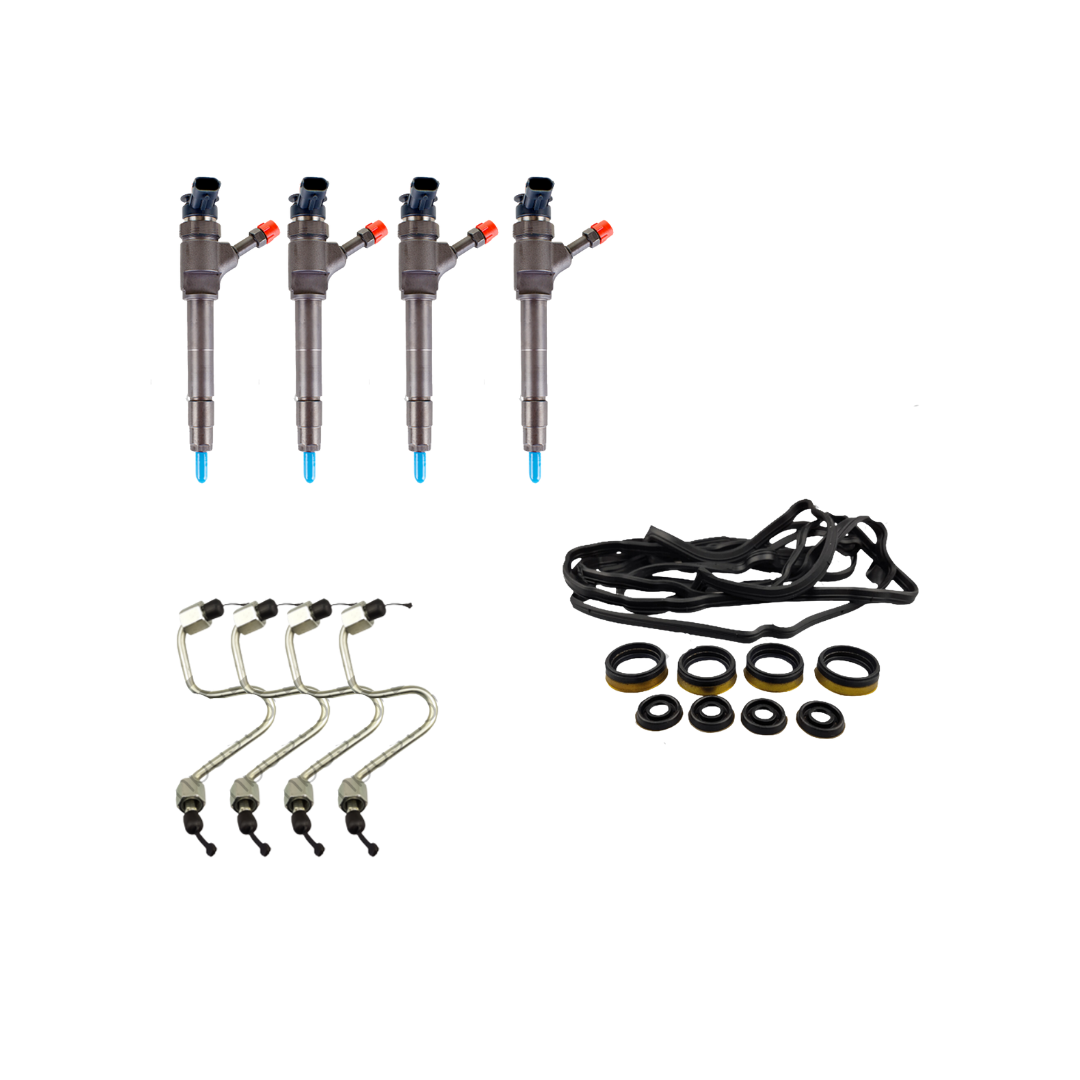

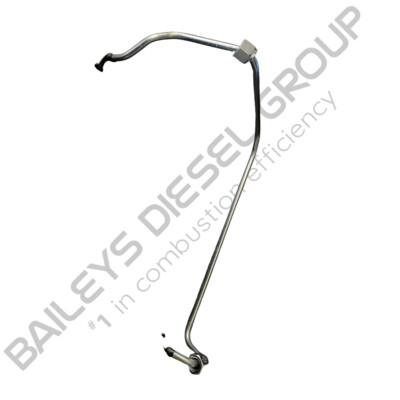

Bailey's strongly recommends it. High pressure fuel lines on common rail Rangers begin to internally deteriorate from around 120,000 kilometres. The steel lining breaks down over time, and the microscopic particles produced travel through the fuel system directly into your new injectors. This contamination causes premature wear that you won't detect until performance declines again. Replacing the lines at the same time as the injectors is a straightforward precaution that protects your investment and avoids a repeat job.

A few things come up regularly. It's important to never reuse old copper washers or O-rings, as worn seals create backpressure and lead to early fuel injector failure. Engine damage is a real risk when these steps are skipped, so clean the injector seats thoroughly before anything goes back in.

When removing the rocker or cam cover during the job, don't bend the high pressure fuel lines out of the way to create clearance. This is a very common shortcut that creates stress fractures in the line walls, and a cracked line under operating pressure creates a fuel leak that turns a straightforward job into a much bigger one.

Disconnect the lines properly, take the extra time, and confirm the vehicle is safe to drive before it leaves the workshop.

A core deposit applies to selected injector products. Before you complete your purchase, take a moment to review the core deposit conditions so you know what's expected. The cost of the deposit is added at checkout and refunded once your old cores are returned to Bailey's within two weeks, freight prepaid and in complete condition as removed from the engine. Each item must be returned with a BDG return sticker or a copy of your invoice. Bailey's offers fast shipping Australia-wide, so your order won't be sitting around once it's placed.

Your purchase is also backed by full warranty coverage on manufacturing defects and faulty materials. For full core return guidelines or any questions about the process, phone the Bailey's team on (02) 4272 2600.
