Landcruiser Injectors

The Toyota Land Cruiser spans a wide range of diesel fuel injectors across its engine history, with each generation requiring a different type of fuel injector to match its injection system.

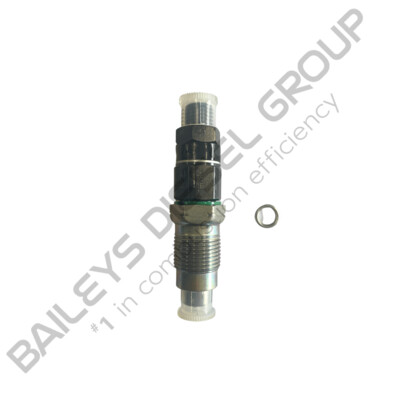

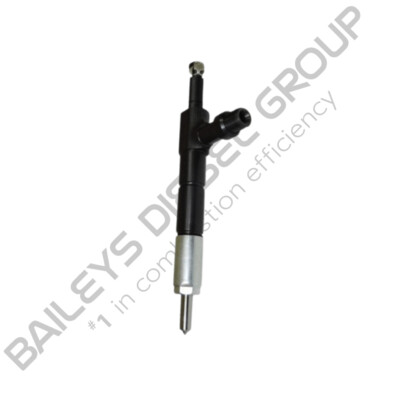

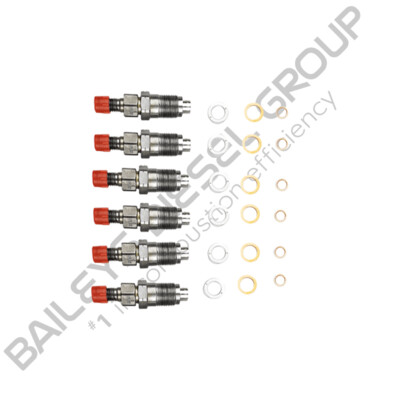

The 1HZ and 1HZ-T are naturally aspirated and turbocharged mechanical indirect injection engines found in 70 and 80 Series vehicles, using mechanical fuel injectors without electronic management. The 1HD-T and 1HD-FT are similarly mechanical turbo diesels, while the 1HD-FTE introduced electronic management to the 80 and 100 Series.

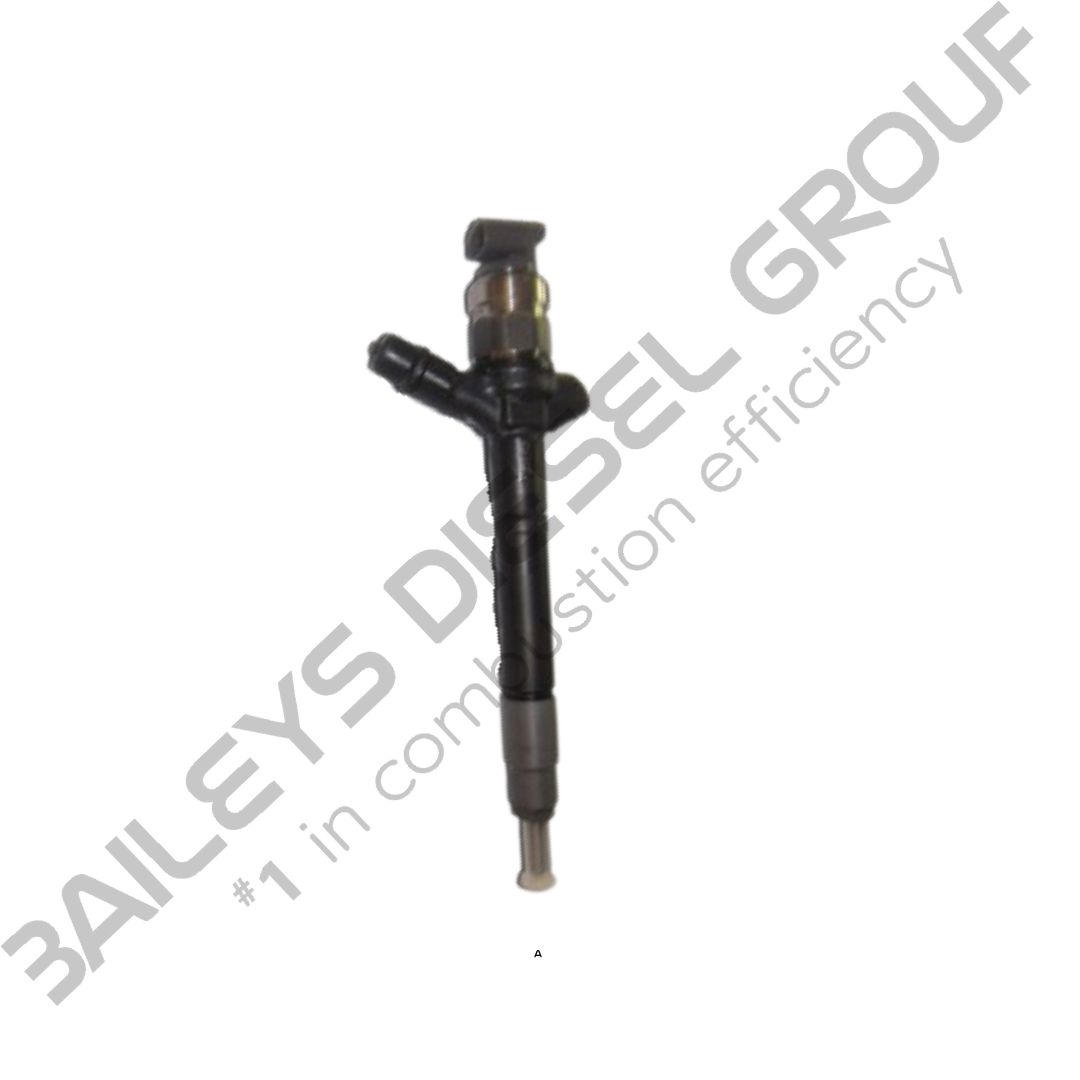

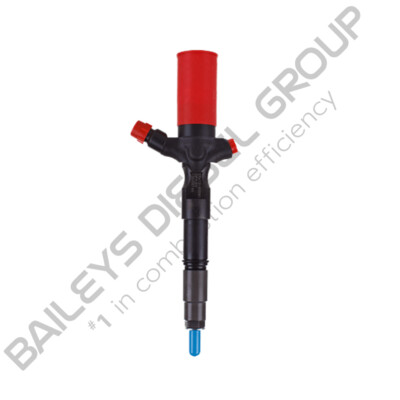

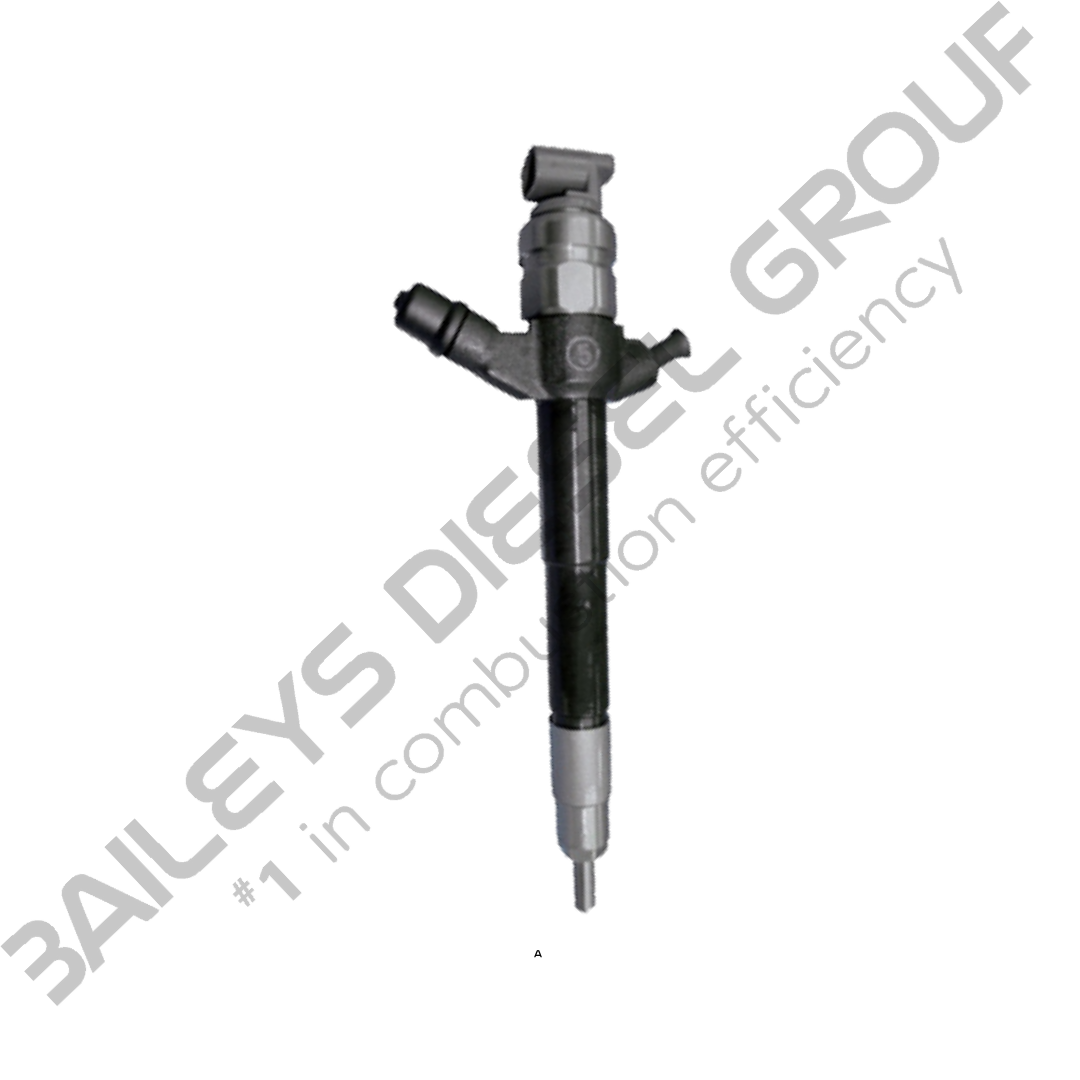

The 1VD-FTV is the Toyota Land Cruiser's 4.5L turbocharged and intercooled V8 common rail fuel system, used in the 200 Series and later 70 Series, running eight Denso injectors at extreme operating pressures.

Each engine family requires different injectors, and confirming the correct part before ordering is critical, particularly on the 1VD-FTV where an incorrect part number will not code into the ECU.

Common symptoms of a failing fuel injector in a Toyota Land Cruiser include rough idling, engine misfires, poor fuel economy, reduced power under load, and excessive black smoke from the exhaust.

On the 1VD-FTV, knocking sounds at idle can also point to an individual fuel injector delivering inconsistent fuel spray.

On the common rail system, the ECU monitors injector performance through a range of sensors in real time, and feedback values above ±3.0mm³/st on a cold engine, or exceeding ±4 to 5 under normal operating conditions, typically indicate an injector that has lost efficiency and is compensating.

Fluctuations in rail pressure outside the normal idle range of around 31,000 to 36,000 kPa can also signal trouble in the Toyota Land Cruiser's injection system before drivability symptoms become obvious.

A visual inspection around each injector for fuel leaks or fuel odour is also a useful early check, as any sealing failure tends to make itself known before performance drops noticeably.

Genuine Denso fuel injectors are the recommended choice as standard injectors for daily drivers, restoring fuel delivery to the specification the Toyota Land Cruiser engine was designed around. Denso is a trusted brand and the OEM supplier for the 1VD-FTV.

For performance builds, Bailey's blueprinted range offers meaningful gains. Standard injectors on the Toyota Land Cruiser 1VD-FTV can be upgraded from Stage 1 +30% through to Stage 3 +70%, with Stage 3 available as a special order for serious builds. Cheap aftermarket alternatives may seem tempting, but they frequently fall short on spray pattern accuracy and internal longevity compared to genuine or properly blueprinted units.

For builds prioritising longevity alongside increased flow, re-nozzled genuine Denso fuel injectors are worth considering, as they retain the durability of an OEM injector body while delivering increased fuel delivery. The right choice depends on how the vehicle is used, what modifications are in place, and what the fuel system can support.

Yes. New fuel injector compensation values must be programmed into the ECU after you install them on the Toyota Land Cruiser 1VD-FTV common rail fuel system. Each injector carries a unique code that tells the engine management system how to fine-tune fuel delivery for that specific unit, compensating for normal manufacturing variation across the set of eight.

Before purchasing, it is crucial to confirm the part number matches the original injectors in your vehicle, as an incorrect part number will not code into the ECU and will cause the engine to run incorrectly regardless of how cleanly the installation was carried out. Coding must be performed by an authorised workshop using appropriate diagnostic equipment before the engine is run following installation.

Fuel injector service life varies across the Toyota Land Cruiser engine family. On the mechanical 1HZ, standard injectors are recommended for replacement every 100,000 kilometres to maintain engine longevity and reliability. On the Toyota Land Cruiser 1VD-FTV common rail system, a fuel injector typically lasts between 150,000 and 300,000 kilometres under normal operating conditions with good fuel quality and consistent filter servicing.

The 1VD-FTV's injectors operate at extreme pressures, and even small amounts of fuel contamination or water in the diesel accelerate internal wear considerably. Vehicles covering long distances on remote tracks where fuel quality varies are at higher risk of premature wear and should have injectors inspected as part of any major scheduled service.

The 1VD-FTV is a complex engine, and the fuel injector replacement reflects that. Replacing a full set of eight fuel injectors on a Toyota Land Cruiser 200 Series can take approximately 16 hours of work from start to finish.

The process involves draining coolant, draining the oil, removing the intercooler, disconnecting coolant and heater lines, and maintaining strict cleanliness throughout to avoid contaminating the high-pressure fuel system.

It is vital to replace the metal gaskets on the nozzle leakage pipes and torque all fittings to the correct specification during the process, as worn gaskets and incorrect torque are reliable causes of fuel leaks that can lead to serious engine damage. Take the extra time to get these steps right. Specific tools are required, and the job is best left to a diesel technician with 1VD-FTV experience.

After replacement, running the engine at 3,000 RPM for ten minutes to bring it to full operating temperature is recommended before returning the vehicle to normal service.

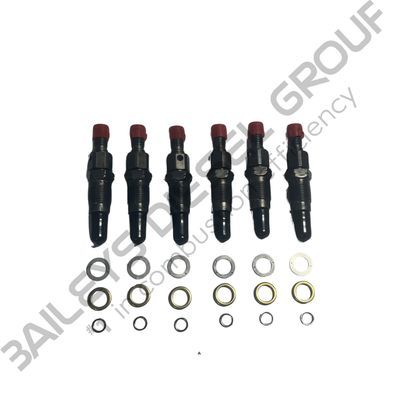

At minimum, always fit new sealing washers and use O-ring grease on the new injectors during installation. Reusing old copper washers compromises the combustion seal and is a consistent cause of post-installation problems.

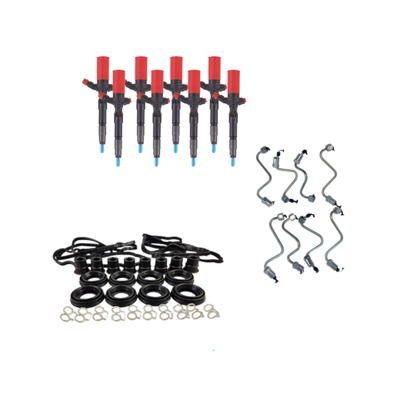

On the 1VD-FTV, replacing the metal gaskets on the nozzle leakage pipes is non-negotiable. Bailey's also strongly recommends replacing the high pressure fuel injector lines on any higher-kilometre Landcruiser, as the steel lining deteriorates internally over time and releases particles that travel directly into the new injectors. Note that having all the parts ready before the job begins, including seals, washers, and fuel lines, avoids the risk of leaving the engine partially disassembled while waiting for components.

The engine bay should be thoroughly cleaned before work begins, and the compensation codes from each new injector must be recorded before installation starts. Clean-room style working practices throughout will give the best long-term outcome.

Bailey's supplies a full high-flow blueprinted fuel injector range for the Toyota Land Cruiser 1VD-FTV across both 70 Series and 200 Series applications. Stage 1 delivers a 30% flow increase over standard injectors, Stage 2 delivers 50%, and Stage 3 delivers 70% and is available as a special order for serious builds. Each stage is available as individual injectors or as a complete bundle for the Toyota Land Cruiser.

For owners who want increased fuel delivery while retaining OEM injector body durability, re-nozzled genuine Denso units provide a practical middle ground. Any high-flow upgrade should be matched with an appropriate fuel system tune to extract the full benefit without fuelling imbalance across the eight cylinders.

Bailey's supplies a comprehensive range of diesel fuel injectors for the Toyota Land Cruiser, covering the mechanical 1HZ and 1HD family through to the 1VD-FTV V8 common rail fuel system. The following products are available across the full lineup: genuine Denso fuel injectors for standard injectors replacements, blueprinted fuel injectors for owners chasing performance, and high-flow options in Stage 1, 2, and 3 configurations for the Toyota Land Cruiser 1VD-FTV. All products are available at great prices, with the price and available quantity shown on each individual product listing page.

Many Landcruiser fuel injectors at Bailey's are available on an exchange basis, meaning a refundable core charge is added at checkout and returned once your old injector core comes back in acceptable condition. This exchange model keeps costs manageable and allows usable cores to be reconditioned for future use. Some products are also available for outright purchase with no core return required, and these are clearly sold as such on the product listing.

When you pay, the refundable core charge is added as a separate line item. The exchange basis deposit is processed within 5 to 10 business days of the core being assessed and approved. Order tracking is available for all dispatched orders, and shipping is available Australia-wide. Once your old core is received and meets the acceptance criteria, the refundable core charge is released as a full refund.

Buying on an exchange basis makes confirming the correct injector before ordering especially important. There can be slight differences between production runs, so providing your vehicle's registration number or VIN is the safest approach if you're unsure of compatibility. If you guys need help identifying the right injector for your specific car, the Bailey's team is here to assist. All Landcruiser injectors come backed by full statutory warranty coverage on manufacturing defects and faulty materials.
