Pajero Injectors

The primary diesel engine in the Australian-market Pajero is the 4M41 3.2L Di-D, a four-cylinder common rail direct injection diesel. Fuel injectors for this engine control the exact moment fuel is injected into the combustion cycle, delivering a precise volume based on real-time engine demand.

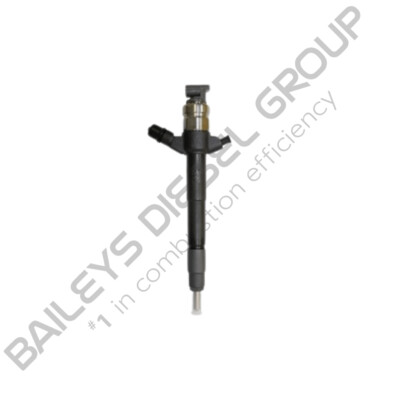

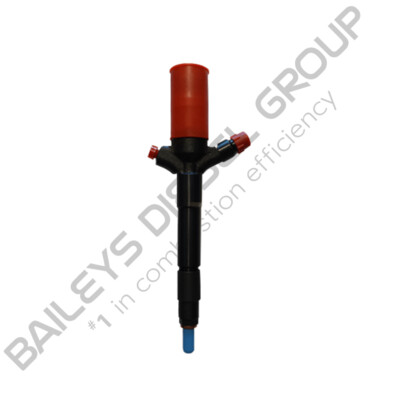

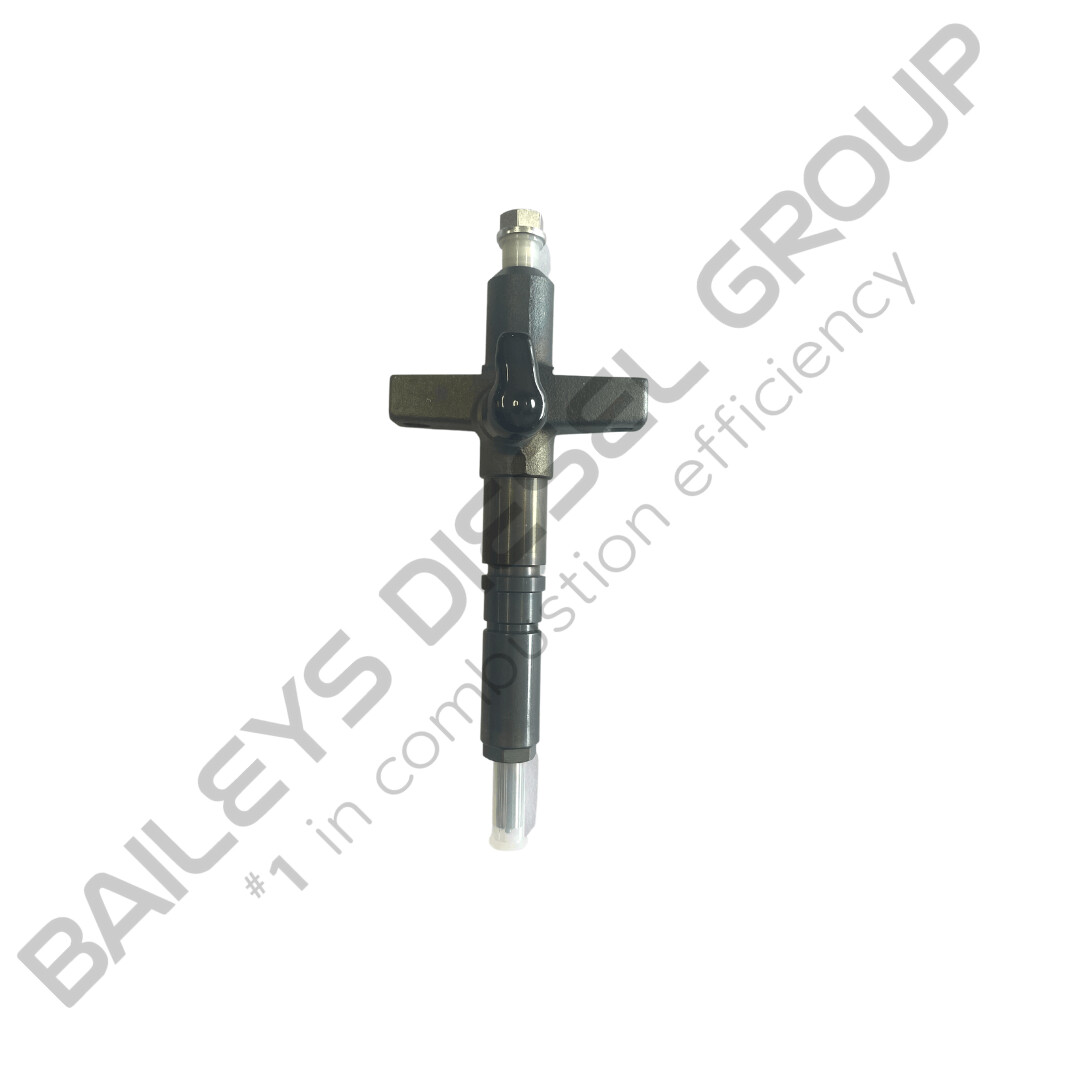

Bailey's stocks both Denso and Zexel (each a trusted brand in diesel fuel injectors) for the 4M41, reflecting the different specifications used across its production run, plus a DPF-specific blueprinted option. The Pajero Sport uses a separate 2.4L 4N15 engine, which requires a different Denso injector entirely. It is important to check the part number and confirm compatibility for your specific vehicle's model and build year, as multiple part numbers exist across the range.

The warning signs that your fuel injectors are failing in a Mitsubishi Pajero vehicle include excessive black smoke from the exhaust, engine knock or ticking sounds under load, slow acceleration and loss of power, rough idling or misfires, poor fuel economy, and unpleasant exhaust smells at startup or while running.

Healthy injectors provide consistent power across the RPM range, and as they wear, you'll typically notice a gradual reduction in performance across multiple indicators before any single fault becomes severe.

Proper injector function is vital for smooth idling and preventing engine damage from inconsistent fuel delivery. Act on these signs early. The sooner you fix an injector issue, the less risk there is of secondary damage escalating the repair cost.

Injector issues can begin appearing from around 100,000 kilometres under hard or poorly maintained use, but Pajero owners more commonly report injector problems surfacing between 150,000 and 200,000 kilometres. Replacing injectors at the right time protects your vehicle's long-term reliability and saves money compared to addressing the secondary engine damage a late injector replacement can cause. Fuel contamination is one of the biggest contributors to early wear, particularly water and sediment in the diesel, which cause corrosion and abrasive wear of the precision internal components.

Clogged injectors from contamination cause poor fuel economy long before performance drops noticeably, so rising fuel costs can be an early indicator worth investigating. Regular fuel filter changes and quality diesel go a long way toward reaching the upper end of the service interval, as does avoiding consistently running a low fuel tank.

The 4M41 has been produced across different model generations with changes to its injection hardware across that production life. Both Denso and Zexel injectors are applicable to the 4M41, but the correct unit must suit your specific Pajero's build year and variant. Selecting by engine code alone is not reliable, as fitting an injector that doesn't match the original spec will cause fuelling problems and ECU issues regardless of how cleanly the installation is carried out. The best approach is to pull the original injector and check the part number stamped on the body. Bailey's can cross-reference this before you order.

Blueprinted injectors are remanufactured units precision-calibrated beyond the standard OEM flow specification. For the 4M41, Bailey's offers a standard blueprinted unit and a DPF-specific blueprinted option. The DPF version is calibrated to maintain the post-injection fuel delivery events that the diesel particulate filter's regeneration cycle depends on. Genuine Denso diesel injectors for the Pajero are also designed to address issues related to engine performance, fuel economy, and DPF-related problems. Fitting a non-DPF-specific unit to a Pajero running a DPF disrupts this process, leading to blocked filters, warning lights, and costly remediation. For non-DPF 4M41 Pajeros, either blueprinted option delivers improvements in throttle response and fuel delivery under load.

Yes, on the common rail 4M41 and 4N15 engines. Each injector carries individual compensation codes that must be entered into the ECU following installation. These codes allow the engine management system to fine-tune fuel delivery to the specific characteristics of each unit, compensating for normal manufacturing variation between injectors. Without coding, the ECU defaults to generic fuelling parameters that produce rough running, poor fuel economy, and the kind of performance that can make new injectors appear faulty when they're working correctly. Have the coding carried out by an authorised workshop with the appropriate diagnostic equipment before the engine is run.

Fuel contamination is the leading cause of premature injector failure in Mitsubishi Pajero diesel vehicles. Water in the diesel supply causes internal corrosion and attacks the precision components controlling fuel delivery. Sediment and particulate matter from a neglected fuel filter accelerate abrasive wear inside the injector body.

Beyond fuel quality, oil contamination in the fuel or combustion gases tracking past worn seals can also compromise injector function, making it important to address any related engine issues at the same time as the injectors. Consistently running the tank low removes the internal cooling and lubrication that the fuel itself provides. Injectors break fuel into a fine mist under high pressure, and any contamination that disrupts that precision shortens their working life considerably.

A clean, well-filtered fuel supply maintained with regular servicing is the single most effective protection.

On a higher-kilometre Pajero, replacing the full set is strongly recommended. By the time one injector has deteriorated enough to cause noticeable symptoms, the remaining units are typically operating at a similar wear level. Replacing a single injector on a worn set restores combustion in that cylinder while leaving the rest contributing to imbalance, continued smoke, and rough running. Doing the full set in one job eliminates the imbalance issue and avoids the labour cost of returning to the same job within a short period. Bailey's also recommends replacing the high pressure fuel lines on any higher-kilometre Pajero at the same time, as deteriorating lines release microscopic steel particles that travel directly into the new injectors.

Bailey's stocks a full range of fuel injectors for the Mitsubishi Pajero, available to buy online directly from the Bailey's website. Each product listing has the price clearly displayed along with fitment details, so you can confirm the correct item before adding it to your cart and proceeding to checkout. Orders are dispatched promptly with Australia-wide delivery available. Once your order is placed you'll receive tracking confirmation so you can follow your injectors to the door.

Customers can purchase Pajero injectors directly from the Bailey's website or contact the team by phone if you prefer to order that way. If you're unsure which injector suits your Pajero, the guys on the Bailey's team are happy to confirm compatibility before you commit to a purchase. The price of each injector is shown on the product listing, and the total price including any applicable core deposit is calculated at checkout. You can pay using your preferred payment method with no hidden charges.

All Pajero injectors come backed by a statutory warranty covering manufacturing defects and faulty materials. Customers with questions about a specific purchase or the returns process are encouraged to contact the Bailey's team directly before taking any further steps.
