Prado Injectors

The Toyota Prado has used two main diesel engines in Australia. The 3.0L 1KD-FTV is a four-cylinder common rail diesel that powered the 120 Series and early 150 Series Prado, with each emissions standard requiring different fuel injectors to match the vehicle's specific fuel system tuning.

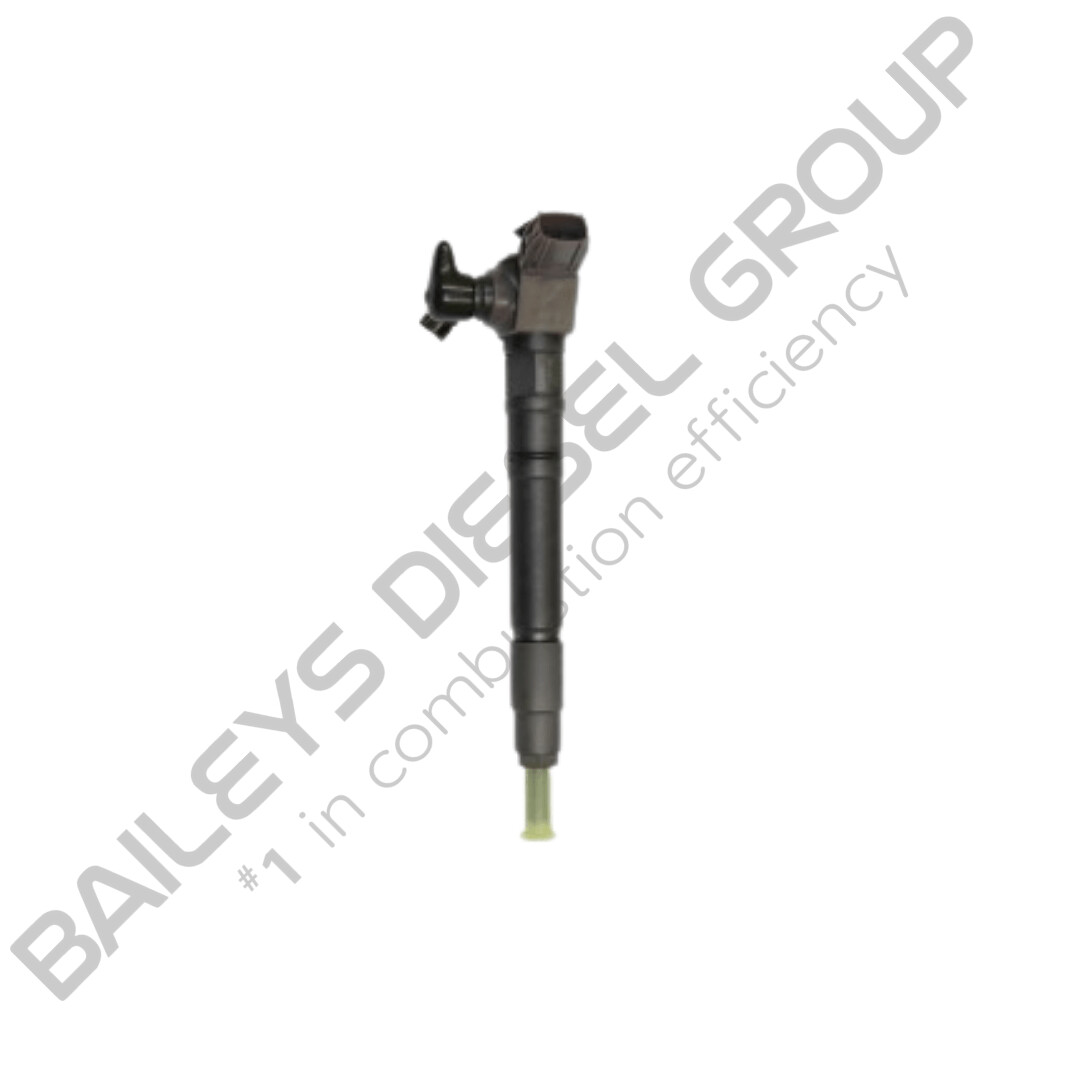

The 2.8L 1GD-FTV replaced the 1KD in the 150 Series from around 2015 onwards and uses a different Denso common rail injector. Both are sophisticated electronic fuel systems where the ECU sends electrical signals to each injector based on real-time data including engine load, speed, and temperature. The part number required depends on which engine and emissions standard your Prado is fitted with.

Prado injectors are considered wearing items, and their condition tends to decline gradually before symptoms become obvious.

The most common signs of injector failure in a vehicle like the Prado include rough or uneven idling, engine noise and knocking under load, excessive exhaust smoke at startup, loss of power particularly when towing or climbing, and increased fuel consumption without any change in driving habits. Carbon buildup on the injector tip from the direct injection process can also affect spray pattern and lead to hard cold starts. On a common rail system like the 1KD-FTV, the ECU monitors injector performance through feedback values from sensors in real time, and a diagnostic scan is the most reliable early check before symptoms become severe.

Neglecting faulty injectors can escalate quickly, in some cases causing piston damage due to improper fuel delivery.

The 1KD-FTV used three distinct injector designs across its production life. The earliest units were fitted from 2005, with a second generation following as Euro 4 compliance was introduced. The third generation G3 common rail injectors arrived in 2009 and represented the most significant improvement, bringing faster reaction times and better fuel atomisation compared to the earlier designs.

The G3 injectors also introduced updated part numbers that are not interchangeable with earlier units. Each design carries a different calculated number of compensation parameters, and each generation has specific part numbers indicating its performance characteristics. Always confirm the same number appears on your replacement as on your OEM spec sheet, and verify the numbers match your specific build year before ordering. Fitting an incorrect variant to the ECU will cause coding and fuelling problems.

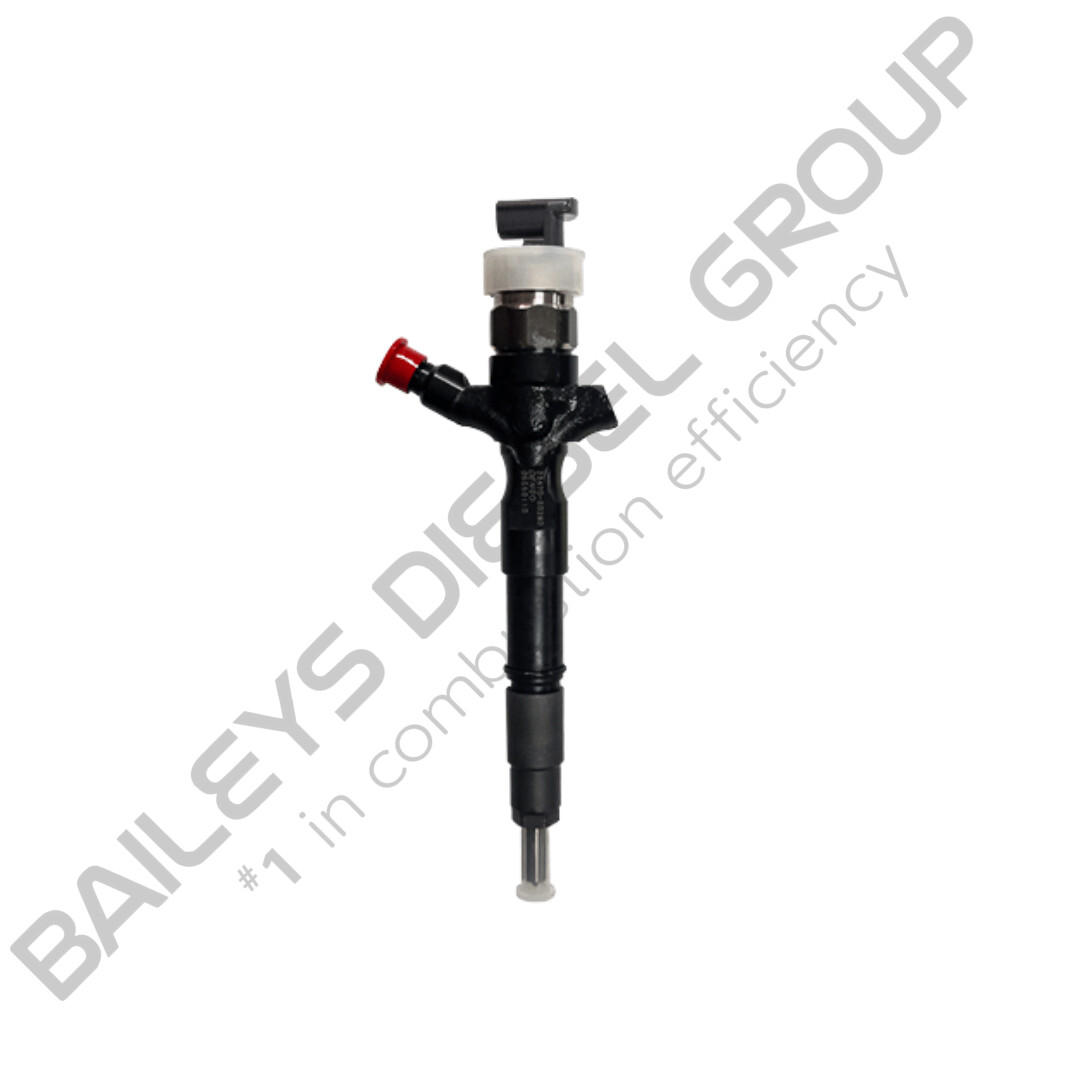

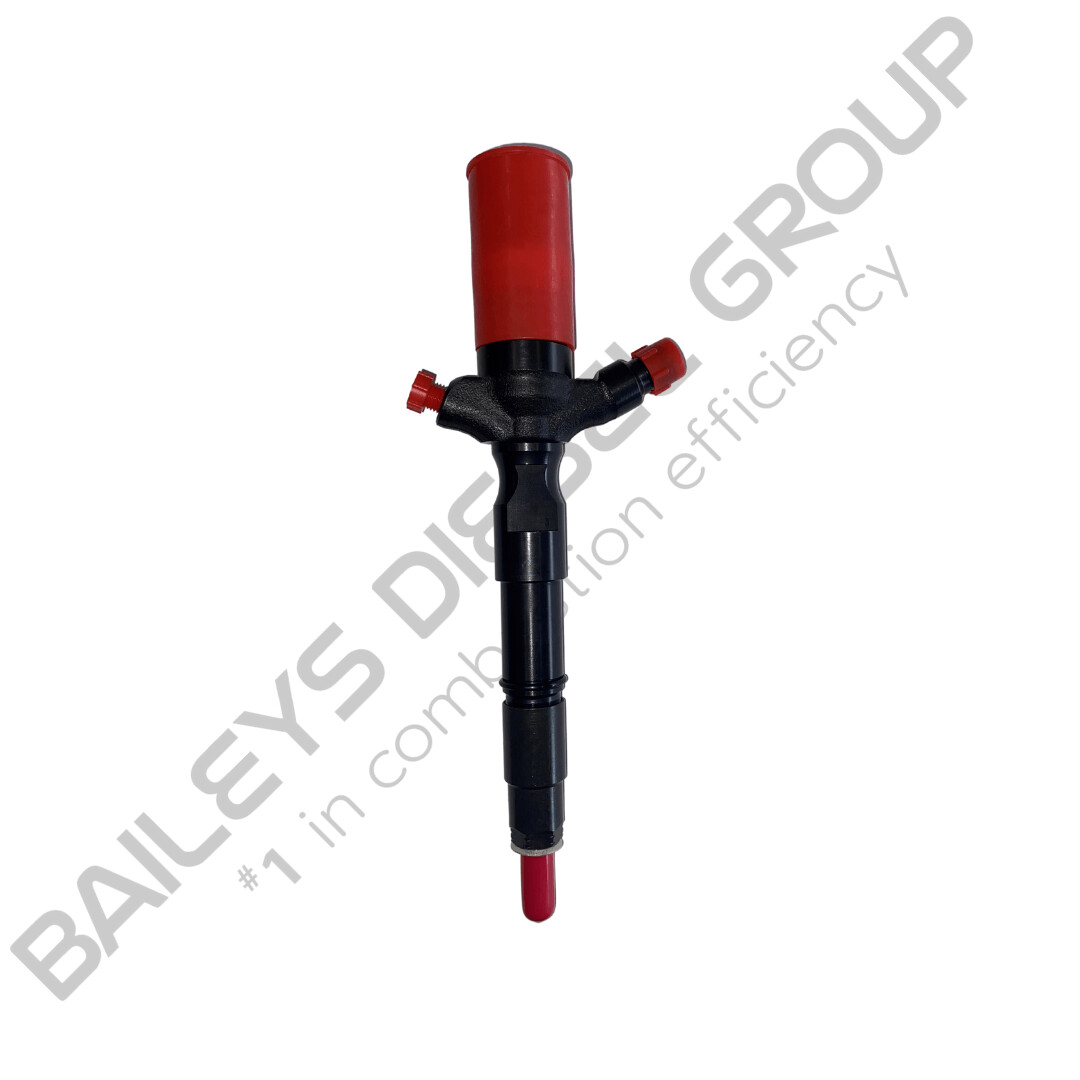

Euro 4 and Euro 5 1KD-FTV injectors are not interchangeable. Euro 4 Prado models use the 095000-7780 series injector, while Euro 5 models use the 295050-0460 series. Note that the original injectors removed from your vehicle will carry the correct series code on the body, which is the most reliable reference point.

The two designs also carry a different calculated number of ECU compensation parameters, meaning the same number from one emissions standard cannot be applied to the other. Installing a unit where the numbers match the wrong Euro spec will result in fuelling imbalance, rough running, and an ECU fault.

If you're unsure, the build year or VIN can be used to confirm. The Bailey's team can verify compatibility before you order.

Genuine Denso fuel injectors are the recommended choice for Prado owners focused on restoring factory performance and long-term reliability.

Denso is a trusted brand and the OEM supplier for the 1KD-FTV and 1GD-FTV, manufacturing genuine parts to the exact specifications the engine was designed around. For Prado owners who want more from the 1KD-FTV, Bailey's blueprinted range recalibrates each individual injector beyond the standard OEM flow spec. The original injectors removed from your engine are the best reference for confirming which specification to order.

Avoid cheap aftermarket alternatives that don't replicate the OEM spray geometry, as these consistently lead to incomplete combustion and premature wear. The Euro 4 blueprinted range reaches Stage 3 +50%, making it well suited to Prado builds running additional turbo or fuel system modifications.

Yes. Like all modern common rail diesel injectors, the 1KD-FTV's injectors carry individual compensation codes that must be entered into the ECU after installation. These codes allow the engine management system to fine-tune fuel delivery to the specific characteristics of each injector.

To ensure the process is completed correctly, have the coding carried out by a qualified mechanic or authorised workshop with the appropriate diagnostic equipment.

Applying the original injectors' codes to the wrong replacement unit, or skipping coding entirely, causes the ECU to default to a generic fuelling map that produces rough running and poor fuel economy. The engine should not be run until coding is complete.

Replacement of Prado diesel injectors is typically required every 100,000 to 150,000 kilometres, though this varies based on the vehicle's usage pattern, fuel quality, and maintenance practices. Supplied new, genuine Denso injectors are engineered to last the full service interval under normal operating conditions.

The 1KD-FTV's common rail system atomises fuel into the combustion chamber at very high pressure, and the injector nozzle tip is subject to wear and carbon accumulation over time.

Don't leave injector maintenance until symptoms appear. The labour involved in a late-stage replacement is often greater than addressing the issue at the first signs of wear. Staying on top of filter servicing is the most practical way to reach the upper end of the service interval.

At minimum, always fit new copper washers and O-rings during installation. Reusing old seals is a consistent cause of combustion leaks and premature injector failure after what was otherwise a clean installation.

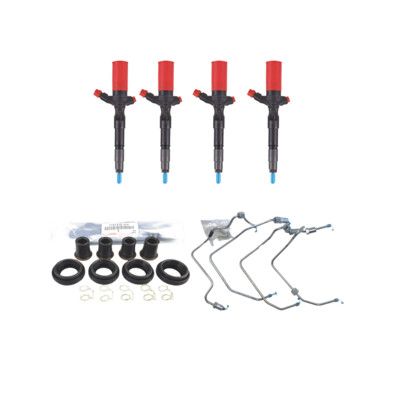

Bailey's also strongly recommends replacing the high pressure fuel lines on any higher-kilometre Prado, as the internal steel lining of these lines begins to deteriorate and releases microscopic particles that travel directly into the new injectors. At this point, inspect and clean the injector seats before the new units go in.

On the 1KD-FTV, the suction control valve is worth inspecting at the same time, as a worn SCV often contributes to the rail pressure inconsistencies that shorten injector life in the first place.

Many of Bailey's Hilux Prado injector products are listed to suit both the Toyota Hilux and Prado because both vehicles share the same 1KD-FTV engine platform across compatible build years and Euro standards. However, this doesn't automatically mean any Hilux injector will suit your Prado. Customers should confirm that the part number matches their specific engine variant and emissions standard before ordering. Our sales team is helpful in confirming compatibility before you place an order — contact us with your build year and VIN and we'll verify the correct unit for you.

Bailey's offers a complete range of fuel injectors for the Toyota Prado, from genuine Denso units for standard OEM restoration through to blueprinted high-flow options for performance builds. The full range is available on the Bailey's website, with the price of each product clearly displayed on the individual listing page. You can add individual injectors or a complete set to your cart depending on what the job requires. Customers with specific compatibility questions can reach our sales team directly, and we're happy to contact you with a confirmed part number before your order is placed.

Ordering from Bailey's is straightforward. Browse the product range, add your required set or individual units to your cart, and complete your purchase at checkout. You can pay by your preferred payment method. If you need guidance before ordering, phone the Bailey's team and we'll point you toward the right option for your car.

A warranty applies to all Prado injectors Bailey's stocks, covering manufacturing defects and faulty materials. For products sold on an exchange basis, exchange units must be returned freight prepaid within two weeks of purchase to remain eligible for the refund. The core deposit is fully refunded once returned units are accepted and assessed. This is the deal Bailey's stands behind for every order. If you guys have any questions about the process, the team is here every step of the way.
